ISO9001 50mm Dish Grinding Wheel With Super Diamond Grits

  • 1
  • 2

Brand Name : TONGYU

Model Number : 12A2(BW1)

Place of Origin : China

MOQ : 5pcs

Price : Usd30-50 per piece

Payment Terms : T/T, L/C, D/P

Supply Ability : 2000pcs per month

Delivery Time : 5-20 days

Packaging Details : box

Name : Resin Bonded Diamond Grinding Wheel Dish wheels Type BW1

Type : Dish wheel, diamond wheel, Grinding Wheel

Main content : Super Diamond Grits

Bonded type : Resin bonded

Out Diameter : 50-200mm

Inner Diameter : 10-75mm

Thickness : 17-37mm

Abrasive area width : 3-10mm

Contact Now

Resin Bonded Diamond Grinding Wheels, Dish Wheels, Diamond Wheels

Dish Wheel type: BW1

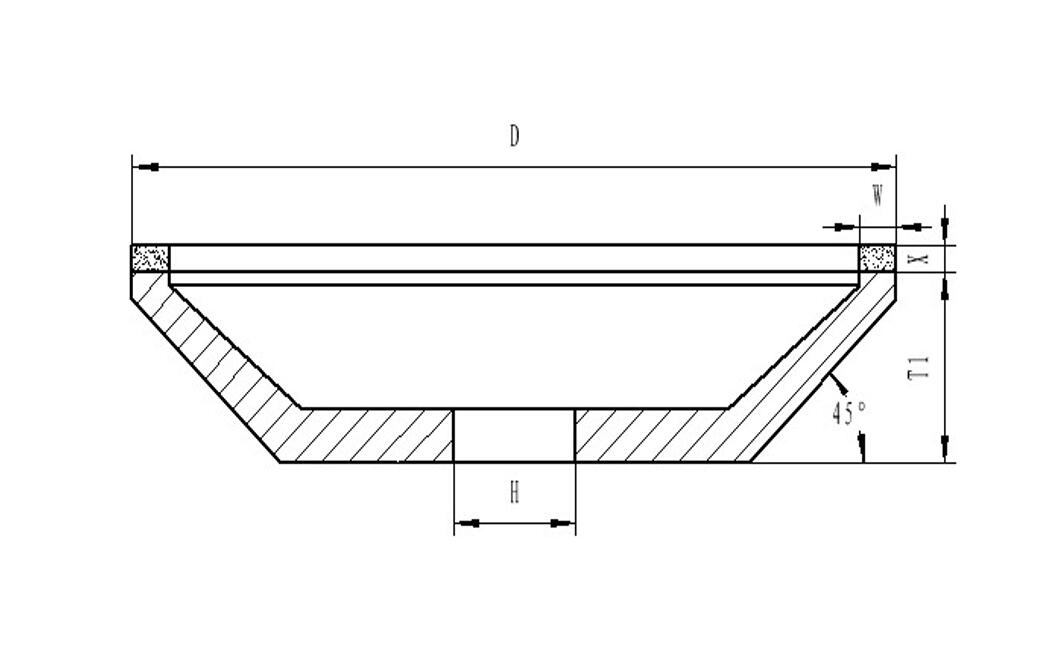

1. Sketch map of our diamond abrasive wheel

D: out diameter

H: inner diameter

T: thicknesss

X: abrasive area width

ISO9001 50mm Dish Grinding Wheel With Super Diamond Grits

2. Detail size matching of our normal grinding wheels.

We accept customed special sizes from client, prefer quantity not less than 10pieces.

Dimensions(mm)
D T1 H X W
50 17 10 3 2.5
75 20 20,32 2,3,4,6 3,6,10
80 22 20 3 5
100 23,29 20,32 2,3,4,6 3,5,6,10
125 23,29 20,32 2,3,4,7 5,6,10
150 23,29 20,32 2,3,4,8 5,6,10,15
175 25 32,75 2,3,4,9 10,15
200 25,37 32,75 2,3,4,10 10,15,20

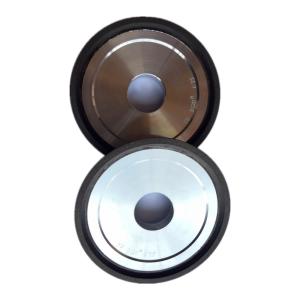

3. More of our diamond wheel picture

ISO9001 50mm Dish Grinding Wheel With Super Diamond GritsISO9001 50mm Dish Grinding Wheel With Super Diamond Grits

4. Character of our grinding wheels

  • High wear resistance
  • Long processing life
  • Sharp with high abbrasive efficiency
  • Wide range of processing applications.

Over 15 years of developing and producing experience in high precision super hard material tools, we have

established a high efficiency system to provide stable performance wheel products.

We welcome yr free inquiry for any question in our diamond cutting wheels. In order to supply exact wheel

type and quotatioon to you, if possible, better for you to provide us more information like followings:

1. Yr processing objects.

2. Yr OD, ID, Thickness , Diamond concentration data.

3. Grit size if possible.

4. Rotary speed of your processing machine.

Many Thanks.
